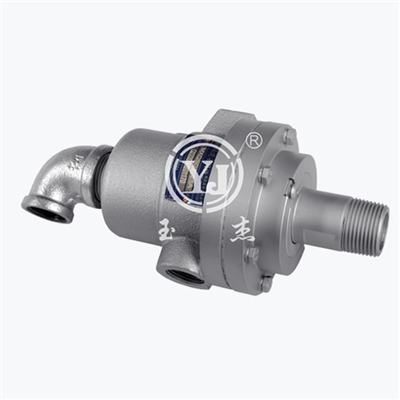

MXQ Rotary Joint

Model：MXQ
Outer pipe：Thread connection or flange connection
Feature：Spherical seal design; Standard antimony or carbon graphite seal technology; Renewable seal plate; carbon guide separation; Improved joint and syphon support; Rotary or stationary siphon compatibility.

Technical Parameter：
Media Hot oil、Steam
Max.Temperature ≤350℃（Hot oil）、≤220℃（Steam）
Max.Pressure ≤1.8MPa
Max.Speed 20A-80A≤250rpm;90A-150A≤100rpm



Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

RN

Model K I O S1 d L1 L2 L3 L4 L6 L7 L8 M N H SW Flange outer tube size control table
A B C D
20A R3/4" Rc3/4" Rc1/2" 12 18 46 104 20 139 199 96 / M10 / / 24 26 11 24 16
25A R1" Rc3/4" Rc1/2" 16 23.5 51 110 25 151 210 109 / M10 / / 32 34 12 32 18
32A R1-1/4" Rc1" Rc1/2" 20 30 51 122 30 184 238 108 139 M10 14 60 41 40 13 38 20
40A R1-1/2" Rc1-1/4" Rc3/4" 25 36 62 143 35 200 278 133 149 M10 16 71 45 47.8 13 45 20
50A R2" Rc1-1/2" Rc1" 32 45 71 161 40 223 312 150 173 M12 18 81 55 60 16 57 24
65A R2-1/2" Rc2" Rc1-1/4" 40 58 76 178 45 251 357 157 183 M12 20 91 70 74 19 70 24
80A R3" Rc2-1/2" Rc1-1/2" 46 72 87 264 45 324 424 187 214 M12 20 110 85 87 25 84 24

We offer customized products if special sizes. Specifications are subject to change without notice.


RT

Model K I O S d L1 L2 L3 L4 L6 L7 L8 M N H SW Flange outer tube size control table
A B C D
20A R3/4" Rc3/4" Rc1/2" Rp1/4" 18 46 104 20 139 199 96 / M10 / / 24 26 11 24 16
25A R1" Rc3/4" Rc1/2" Rp3/8" 23.5 51 110 25 151 210 109 / M10 / / 32 34 12 32 18
32A R1-1/4" Rc1" Rc1/2" Rp1/2" 30 51 122 30 184 238 108 124 M10 14 60 41 40 13 38 20
40A R1-1/2" Rc1-1/4" Rc3/4" Rp3/4" 36 62 143 35 200 278 133 149 M10 16 71 45 47.8 13 45 20
50A R2" Rc1-1/2" Rc1" Rp1" 45 71 161 40 223 312 150 173 M12 18 81 55 60 16 57 24
65A R2-1/2" Rc2" Rc1-1/4" Rp1-1/4" 58 76 178 45 251 357 157 183 M12 20 91 70 74 19 70 24
80A R3" Rc2-1/2" Rc1-1/2" Rc1-1/2" 72 87 264 45 324 424 187 214 M12 20 110 85 87 25 84 24

We offer customized products if special sizes.

Specifications are subject to change without notice.
